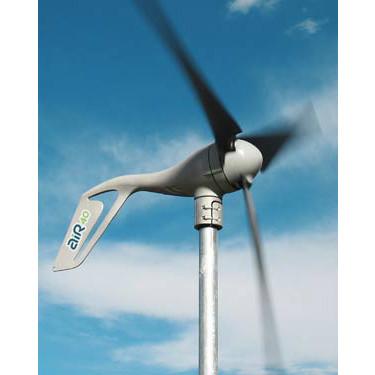

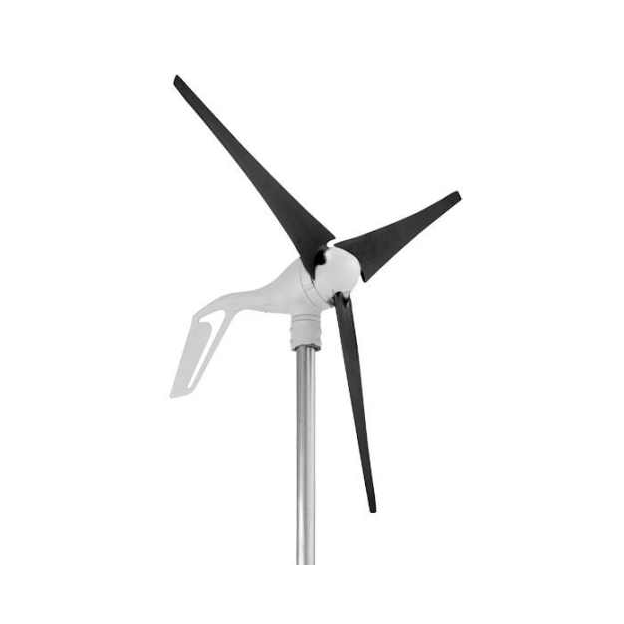

The Windpower Air 40 Wind Turbine by Ryse Energy
The Air 40 by Ryse Energy is the premier micro-wind turbine for land-based applications.
Efficient operation across a wide range of wind speeds makes the Air 40 ideal for pairing with solar to offset seasonal variation, delivering more consistent energy.
- Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.
- Blades designed for quieter operation, durability and optimum energy capture in most wind speeds.
- Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation
- Pair with solar PV for redundant energy production year-round.
- Produces 40 kWh of energy per month generating energy in a wide range of wind speeds
Ryse Energy Windpower Wind Turbine Specifications
Energy | Approx. 40 kWh/mo at 5.8 m/s (13 mph) |
Swept Area | 1.07 m2 (11.5 ft2) |
Rotor Diameter | 1.17 m (46 in) |
Weight | 5.9 kg (13 lb) |
Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
Startup Wind Speed | 3.1 m/s (7 mph) |
Voltage | 12, 24 and 48 VDC |
Turbine Controller | Mircoprocessor-based smart controller |
Body | Permanent mold cast aluminum |
Blades | (3) Injection-molded composite |
Alternator | Permanent magnet brushless |
Overspeed Protection | Electronic torque control |
Survival Wind Speed | 49.2 m/s (110 mph) |
Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
Wind Speed Operating Range | 3.1-22 m/s (7-49 mph) |
Optimum Wind Speed Range |
4.5-22 m/s (10-49 mph) |
Ryse Energy Air 40 Wind Turbine Series Manual
The body of the Windpower Air 40 is constructed of permanent mold cast aluminum and the three blades are made of carbon molded composite.
The generator can be used for multiple types of off-grid power applications including telecom, security systems, cabins, tiny homes, and trailers. It can also be used in conjunction with a solar system to supplement battery charging.
Requiring only a 7mph wind for startup, the AIR 40 will produce 40 kWh per month with an average wind speed of 13 miles per hour.
It comes with a built-in microprocessor controlled charge controller and the option of using an external load diversion controller.
The wind generator cannot be connected directly to a power inverter. It must be used to charge a 12-volt battery bank.
Your inverter will get its power from the batteries.
Comes with a 5-year manufacturer's warranty.

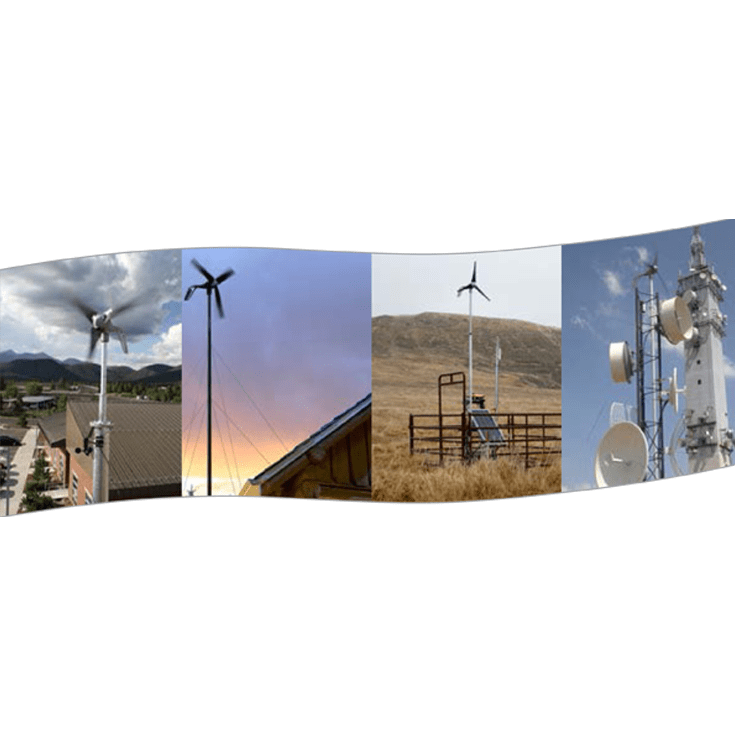

Ryse Energy Windpower Applications Chart
Questions & Answers
Have a Question?
-
What type of surge protector (lightening protection) do you recommend?
It is always a good idea to use lightning protection. The DELTA LIGHTNING ARRESTOR (model LA 302-DC – 3 WIRE – 500 V) is widely used. In addition, it is also recommended to use the MidNight Solar – MDSPD – 300 - DC. Grounding your system is also very important in protecting against lightning. We do not carry these products but they can be easily sourced on the internet.
-
How many batteries will I need and what type
Deep cycle batteries are required (types include: flooded lead acid, absorbed glass mat (AGM), gel cell and NiCad.) for use with the Primus Windpower Air 40 Wind Turbine. IMPORTANT: Never use “automotive” batteries or any battery other than a “deep-cycle” battery. The number of batteries that you will need will vary depending on your usage. To calculate the number of batteries you will need, see page 11 of the downloadable manual on the product page. This formula will help you get the right number of batteries.
